StageConnect: Behringer protocol is open source

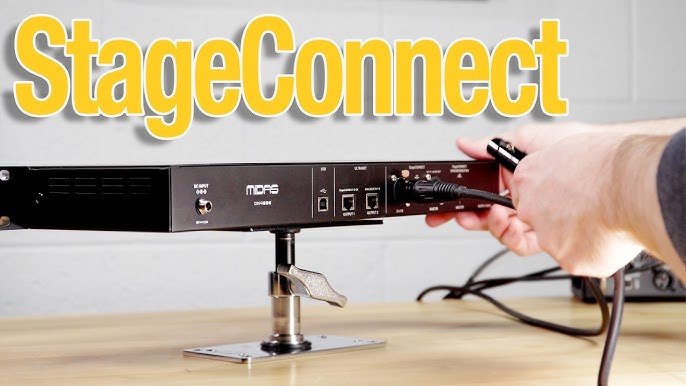

StageConnect This repository contains an Arduino-Library to create a StageConnect device (subordinated node-device as well as controlling main-device) using AnalogDevices AD242x-ICs like the AD2428. StageConnect is based on the automotive A²B and is used to connect the Behringer WING to the Midas DP48, for instance. Analog Devices A²B audio bus is used as the technology basis and uses simple XLR connectors between two devices to transmit 32 channels of uncompressed 48kHz 32bit audio. A StageConnect/A2B main-device uses a virtual I2C-connection through the A2B-link that is routed via the AD242x-IC to the Arduino microcontroller. Usage Include the main-library as well as the I2C-Wrapper-Class, instantiate both classes and setup the Wire-library: #include <StageConnect.h> #include…
